Description

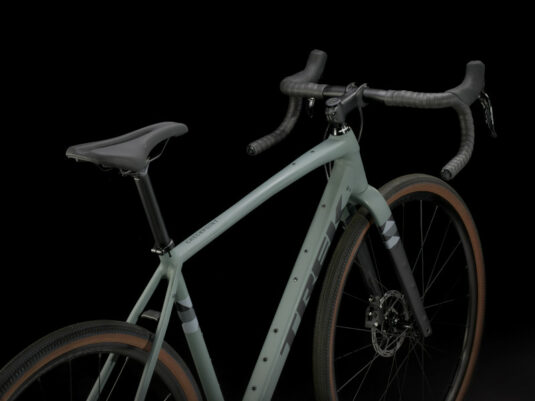

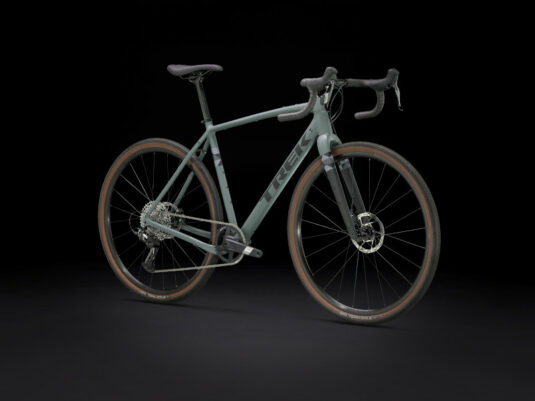

The Checkpoint ALR 5 is an adventure-ready alloy gravel bike that’s kitted with quality parts for long, rugged, miles on anything from chunky gravel to smooth tarmac. A wealth of features like loads of mounts for bags and racks, and a SRAM Apex 1×12 drivetrain makes this Checkpoint ready to customise for your next adventure.
It’s right for you if…
You favour epic gravel adventures that end with a big beverage and a burrito. But that doesn’t mean you’ll compromise on performance. You expect to get a lot for your hard-earned money, including quality, versatility, durability and a ridiculous amount of fun.
The tech you get
A stout 300 Series Alpha Aluminium frame with a progressive geometry that’s stable at speed and efficient when you’re grinding up a climb, hidden cables that won’t interfere with bags, rack and mudguard mounts and integrated frame bag mounts, a 1×12 SRAM Apex drivetrain for grinding up hills or through rough gravel, hydraulic disc brakes for all-condition stopping power, tubeless-ready rims and wide Bontrager GR1 Team Issue 700x40c gravel tyres for added stability and traction.
The final word
If the amount of adventure you can get per pound spent is a priority for you, the Checkpoint ALR 5 is your ride. Quality parts, a durable alloy frame and a wealth of features like extra tyre clearance and customisation options so you can confidently take on bigger, better adventures.
Why you’ll love it
- Its progressive geometry is quick and nimble yet keeps you stable and in control on fast, choppy descents
- You get serious versatility that’s suited for a wide variety of ride styles, from gravel and bikepacking to daily commutes
- Massive tyre clearance means you can use tyres up to 45 c for extra traction and stability in any conditions

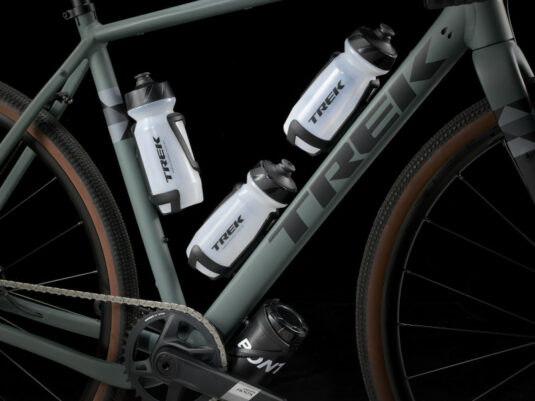

- Integrated frame bag mounts and rack and mudguard mounts make it easy to carry gear and water

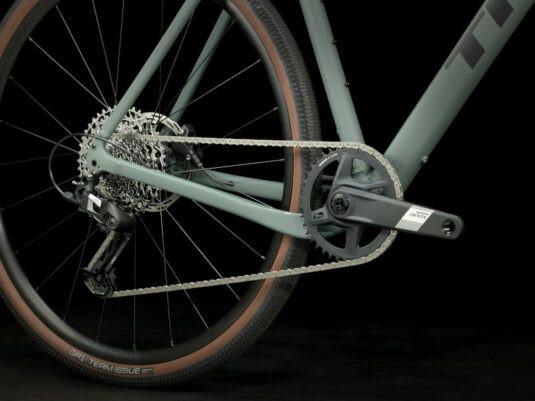

- SRAM’s Apex 1×12 drivetrain gives you tons of gears for grinding up steep grades
Why we won’t ship unbuilt Trek bikes
Due to warranty regulations, Trek bikes must be assembled by a qualified bike mechanic in an approved store. This is an international policy for Trek bikes. Therefore, any Trek Bicycle purchased online must be picked up from Velo Ronny’s or contact us for further options.
Specifications
*spec applies to all sizes unless otherwise noted

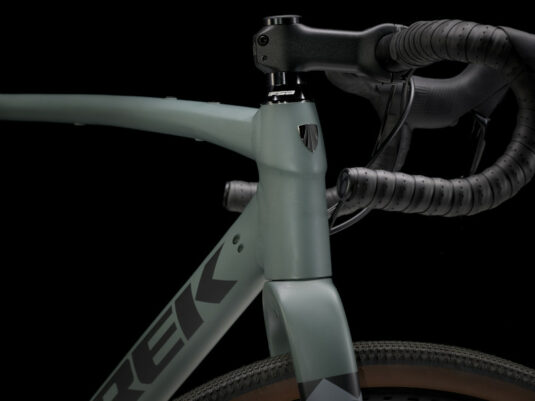

| Frame with Fork | 300 Series Alpha Aluminium, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142×12 mm thru-axle |
|---|---|
| Fork |
Checkpoint carbon, tapered carbon steerer, rack mounts, mudguard mounts, flat-mount disc, 12×100 mm thru axle |
Weight
| Weight | 56 – 9.71 kg / 21.41 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
| Shifter | SRAM Apex, 12-speed |
|---|---|
| Rear derailleur | SRAM Apex XPLR, 44T max cog |
| *Crank | Size: 52 SRAM Apex 1, 40T, DUB Wide, 170 mm length |
| Size: 54, 56 SRAM Apex 1, 40T, DUB Wide, 172.5 mm length |
|
| Size: 58, 61 SRAM Apex 1, 40T, DUB Wide, 175 mm length |
|
| Bottom bracket | SRAM DUB Wide, T47 threaded, internal bearing |

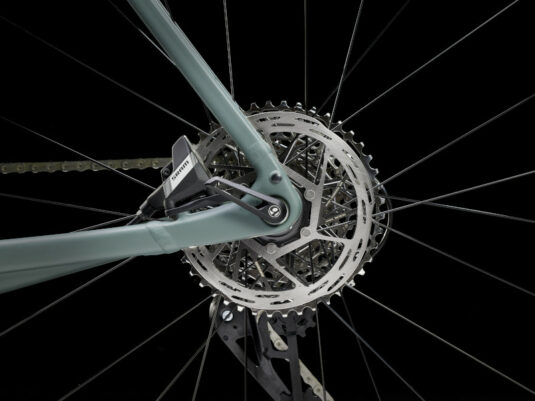

| Cassette | SRAM XPLR PG-1231, 11-44, 12-speed |
| Chain | SRAM Apex, 12-speed |
| Max. chainring size | 1x: 44T (SRAM), 50T (Shimano), 2x: 50/34 |
Wheels
| Hub front | Bontrager alloy, sealed bearing, CenterLock disc, 100×12 mm thru axle |
|---|---|
| Skewer front | Bontrager Switch thru axle, removable lever |
| Hub rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142×12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Paradigm, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700×40 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | See service manual |
| *Saddle | Size: 52 Bontrager Verse Comp, steel rails, 155 mm width |
|---|---|
| Size: 54, 56, 58, 61 Bontrager Verse Comp, steel rails, 145 mm width |
|
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |

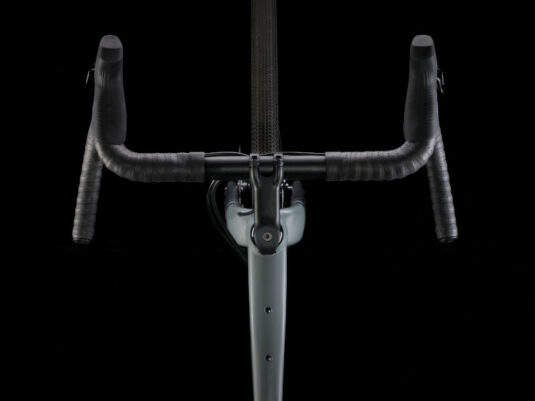

| *Handlebar | Size: 52 Bontrager Elite Gravel, alloy, 40 cm width |
| Size: 54, 56 Bontrager Elite Gravel, alloy, 42 cm width |
|
| Size: 58, 61 Bontrager Elite Gravel, alloy, 44 cm width |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem | Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
| Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
| Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
|

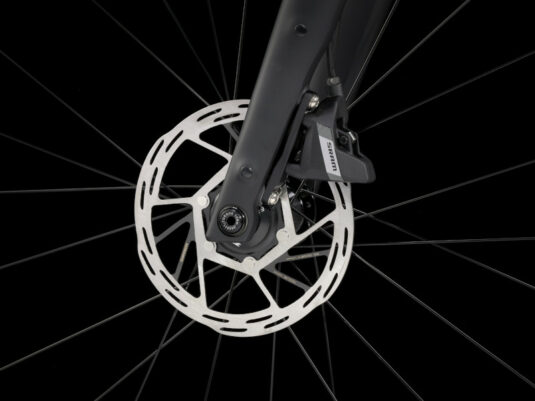

| Brake | SRAM Apex hydraulic disc, flat mount |
| Brake rotor | SRAM Paceline, rounded, CentreLock, 160 mm |
| Brake lever | SRAM Apex, 12-speed |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
Reviews
There are no reviews yet.
