Description

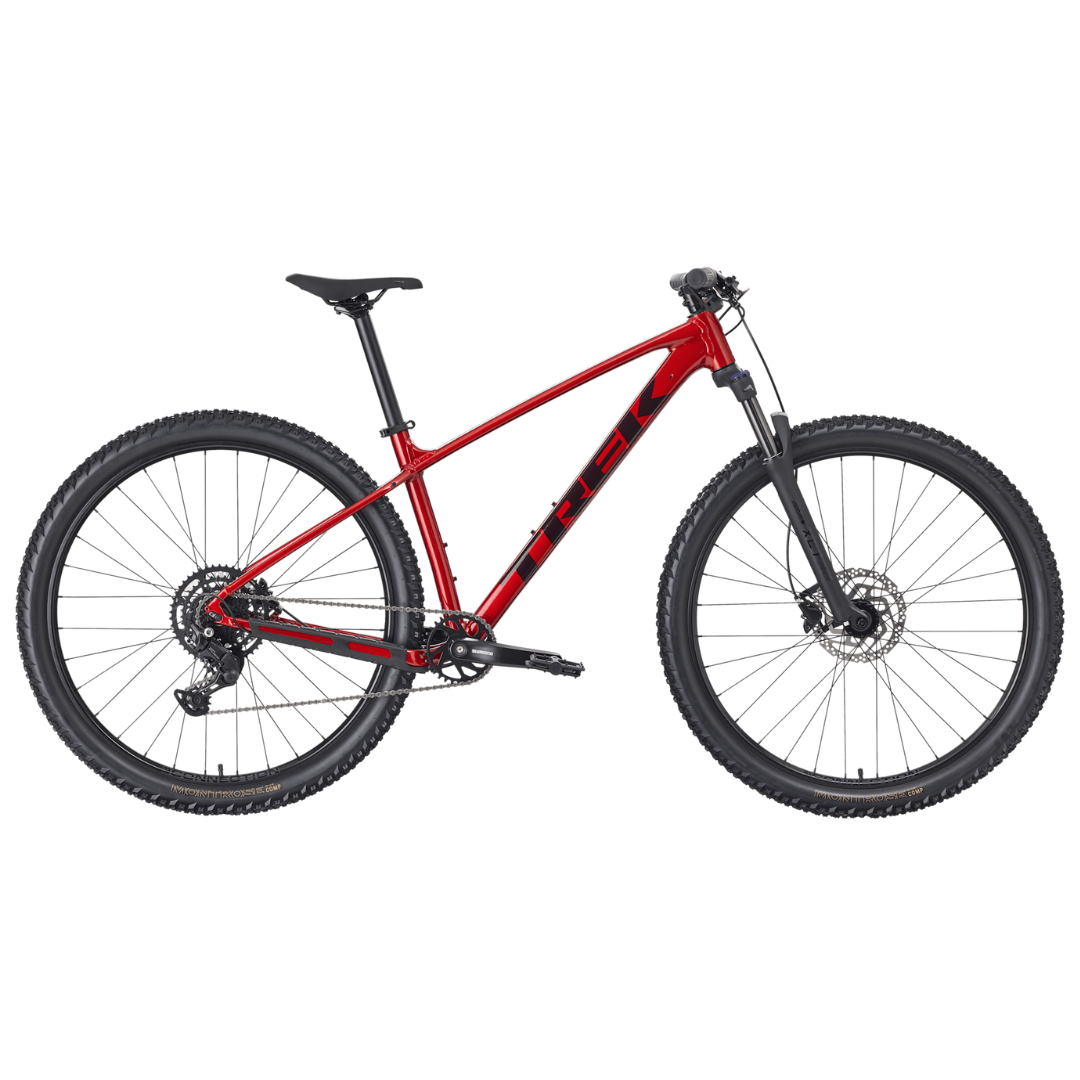

Marlin 5 is a trail-worthy daily rider that’s perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
Why we won’t ship unbuilt Trek bikes
Due to warranty regulations, Trek bikes must be assembled by a qualified bike mechanic in an approved store. This is an international policy for Trek bikes. Therefore, any Trek Bicycle purchased online must be picked up from Velo Ronny’s or contact us for further options.
Specifications
*Please note – spec applies to all sizes unless listed separately
| *Frame | Size: XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135×5 mm ThruSkew |
|---|---|
| Size: S , M , ML , L , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135×5 mm ThruSkew |
|
| *Fork | Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5″ wheel, 100 mm QR, 80 mm travel |
| Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5″ wheel, 100 mm QR, 100 mm travel |
|
| Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29″ wheel, 100 mm QR, 100 mm travel |
| Hub front | Formula DC-20, alloy, 6-bolt, 5×100 mm QR |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm QR |
| *Skewer rear | Size: XS , S , M , ML , L , XL , XXL 173×5 mm QR |
| Size: XS , S , M , ML , L , XL , XXL Trek Thru-Skew |
|
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Spokes | 14 g stainless steel, black |
| *Tyre | Size: XS , S Bontrager Montrose comp, wire bead, 30 tpi, 27.5×2.40″ |
| Size: XS , S Bontrager Montrose Comp, wire bead, 30 tpi, 27.5×2.40″ |
|
| Size: M , ML , L , XL , XXL Bontrager Montrose comp, wire bead, 30 tpi, 29×2.40″ |
|
| Size: M , ML , L , XL , XXL Bontrager Montrose Comp, wire bead, 30 tpi, 29×2.40″ |
| Shifter | Shimano U4000, 9-speed |
|---|---|
| Rear derailleur | Shimano CUES U4000 |
| *Crank | Size: XS , S , M , ML Shimano CUES U4001, 32T, 52mm chain line, 170 mm length |
| Size: L , XL , XXL Shimano CUES U4001, 32T, 52mm chain line, 175mm length |
|
| Bottom bracket | Shimano, 73 mm, threaded cartridge, 122.5 mm spindle |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9-speed |
| Chain | Shimano LG500 |
| Pedal | VP-536 nylon platform |
| Saddle | Bontrager Verse Short, stainless steel rails |
|---|---|
| *Seatpost | Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
| Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
| *Handlebar | Size: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
| Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width |
|
| Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
| Grips | Trek Line Comp, nylon lock-on |
| *Stem | Size: XS , S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
| Size: M , ML , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
|
| Size: XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length |
|
| Size: XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
|
| Head set | Semi-integrated, 1-1/8″ |
| Brake | Shimano MT200 hydraulic disc |
| *Brake rotor | Size: XS , S , M , ML , L , XL , XXL Shimano RT26, 6-bolt, 160 mm |
| Size: M , ML , L , XL , XXL Shimano RT26, 6-bolt, 180 mm |
|
| Brake Set | Shimano MT200 hydraulic disc |
|
Weight |
M – 15.10 kg / 33.29 lbs |
|---|---|
|
Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
