Description

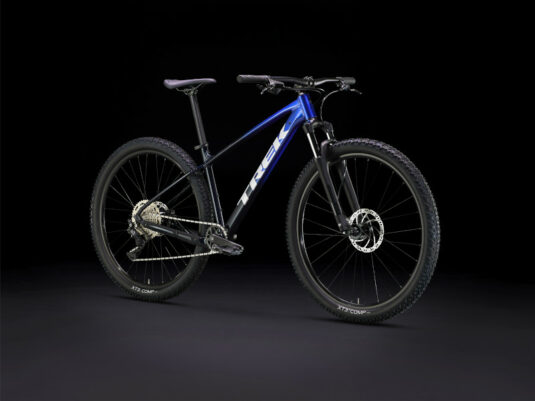

The Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.
It’s right for you if…
You want a trail bike that’s dialled for building confidence on the dirt, and versatile enough for commuting to work or school.
The tech you get
A lightweight aluminium frame with modern trail riding geometry and internal routing that keeps cables protected and keeps the bike looking sleek. A front suspension fork that cushions rocks, roots and bumps in the trail, 10-speed fuss-free Shimano Deore shifting and the serious stopping power of hydraulic disc brakes.
The final word
The Marlin 6 is an ideal trail bike for riders who want to progress on the trail, and want a bike that can keep them rolling off of the trail too.
Why you’ll love it
- You get real-deal modern mountain bike geometry that keeps handling confident when you’re on singletrack, but is versatile enough for use on roads and bike trails too
- Rack and mudguard mounts make it easy to accessorise, so your mountain bike can double as a rugged commuter
- The new Thru-Skew system is safer, simpler and stronger, plus it makes removing the rear wheel for flat fixes a piece of cake.
- Internal routing makes it easy to add a dropper post that lets you lower your saddle on the fly for more confident descending
- Marlin models in sizes XXS and XS have a curved top tube and lower standover height that makes it easier for smaller riders to mount and dismount
Why we won’t ship unbuilt Trek bikes
Due to warranty regulations, Trek bikes must be assembled by a qualified bike mechanic in an approved store. This is an international policy for Trek bikes. Therefore, any Trek Bicycle purchased online must be picked up from Velo Ronny’s or contact us for further options.
*Please note – spec applies to all sizes unless listed separately
| *Frame | Size: XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135×5 mm ThruSkew |
|---|---|
| Size: S , M , ML , L , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135×5 mm ThruSkew |
|

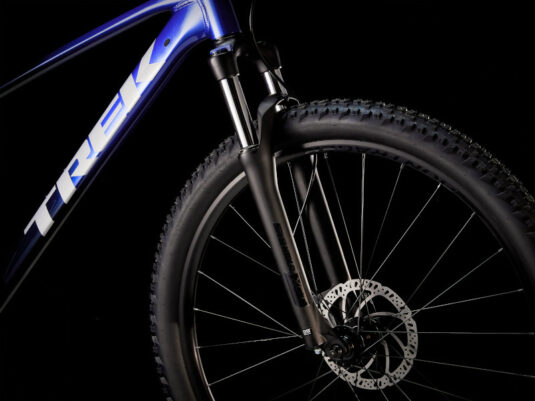

| *Fork | Size: XS , S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5″ wheel, 100 mm QR, 100 mm travel |
| Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29″ wheel, 100 mm QR, 100 mm travel |
|
| Max compatible fork travel | 120mm, XXS: 80mm |
| Hub front | Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm QR |
| Skewer rear | Bontrager Switch thru axle |

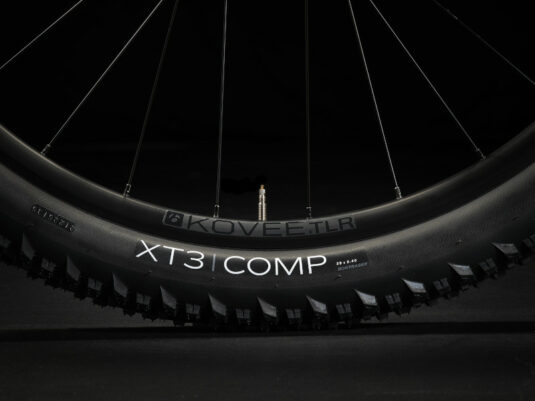

| *Rim | Size: XS , S Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve |
| Size: M , ML , L , XL , XXL Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve |
|
| *Tyre | Size: XS , S Bontrager XT3 Comp, wire bead, 30 tpi, 27.5×2.40″ |
| Size: M , ML , L , XL , XXL Bontrager XT3 Comp, wire bead, 30 tpi, 29×2.40″ |
|
| Max tyre size | Frame: 29×2.40″ (XXS: 26×2.40″, XS & S: 27.5×2.40″), Fork: See manufacturer |
| Shifter | Shimano Deore M4100, 10 speed |
|---|---|

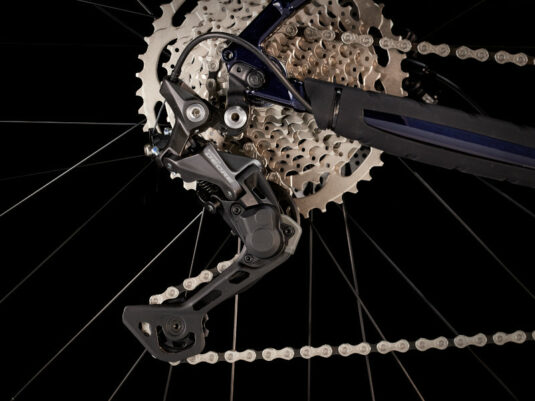

| Rear derailleur | Shimano Deore M5120, long cage |

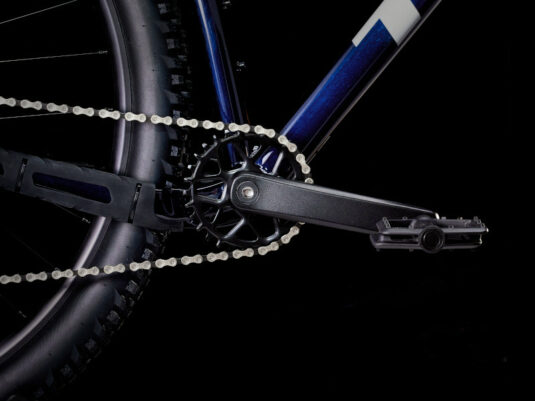

| Crank | Prowheel C10Y-NW, 30T steel narrow-wide ring, 170 mm length |
| Bottom bracket | VP BC73, 73 mm, threaded cartridge |

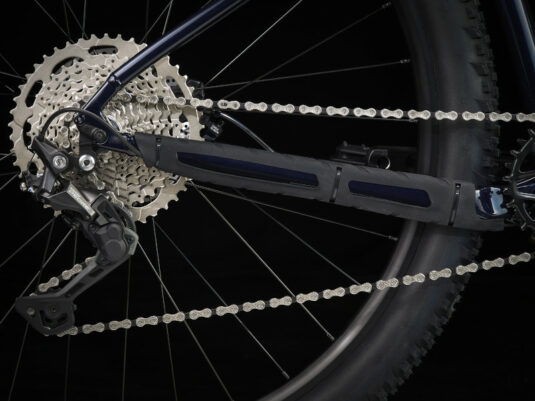

| Cassette | Shimano Deore M4100, 11-46, 10-speed |
| Chain | KMC X10, 10-speed |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 1x: 34T, 2x: 36/22 |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|---|---|
| *Seatpost | Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
| Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
| *Handlebar | Size: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
| Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width |
|
| Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
| Grips | Bontrager XR Endurance Comp, lock-on |
| *Stem | Size: XS , S Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length |
| Size: M , ML , L Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length |
|
| Size: XL Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length |
|
| Size: XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
|
| Head set | Semi-integrated, 1-1/8″ |

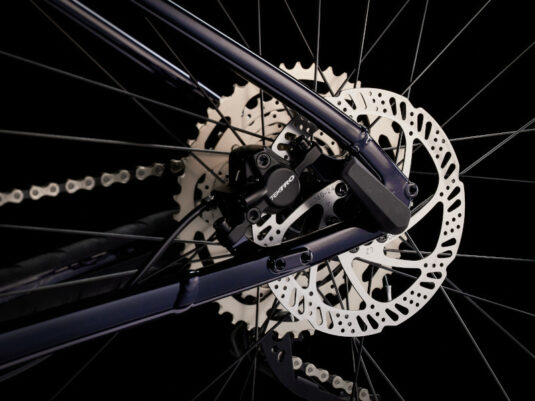

| Brake | Tektro HD-M275 hydraulic disc, 180 mm rotor |
| Brake Set | Tektro HD-M275 hydraulic disc, 160 mm rotor |
| Rotor size | Max brake rotor sizes – Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
| Weight | M – 14.80 kg / 32.63 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
